Description

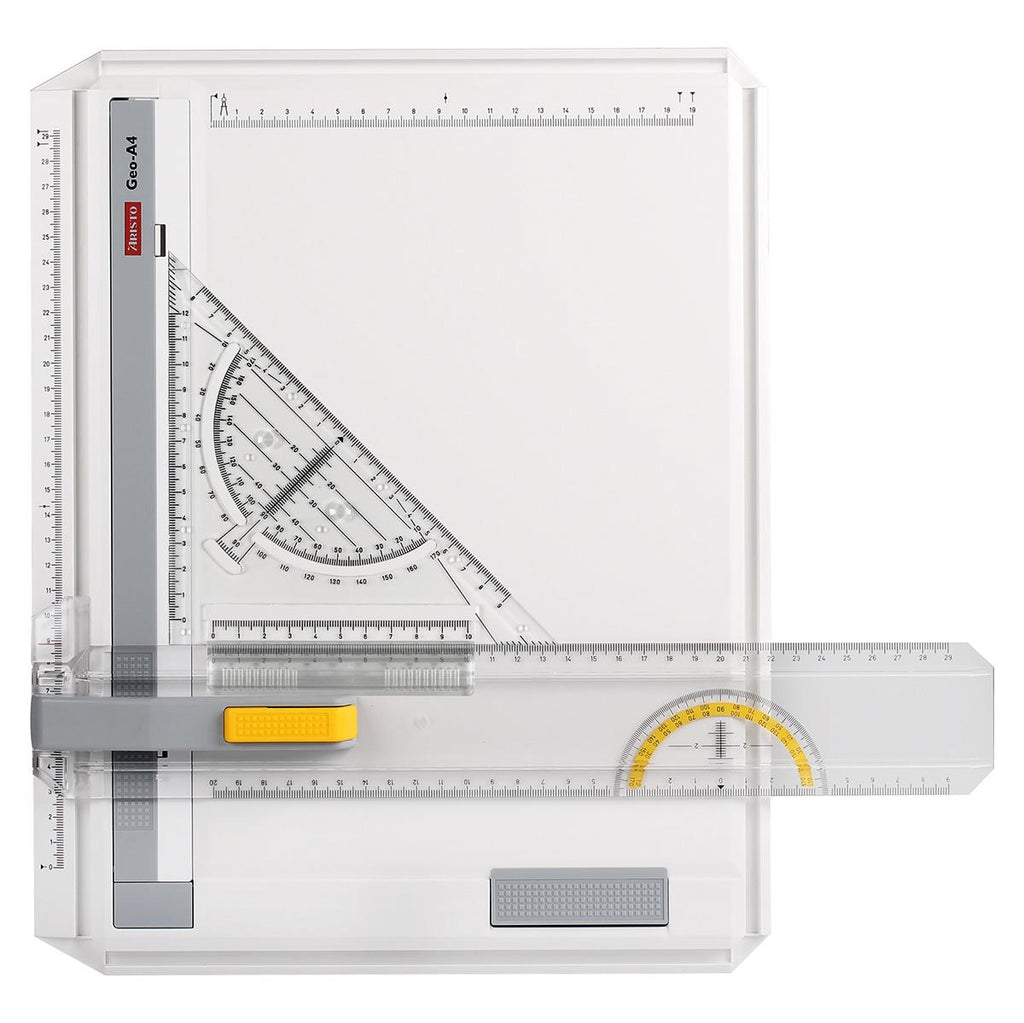

AR70449 Geo-Board A4 with Carry Bag

The professional ARISTO Geo-Board DIN A4 in the practical Carry Bag is the best basis for engineers of tomorrow.

ARISTO drawing boards convince with simple and ergonomic handling, high stability and precise drawing.

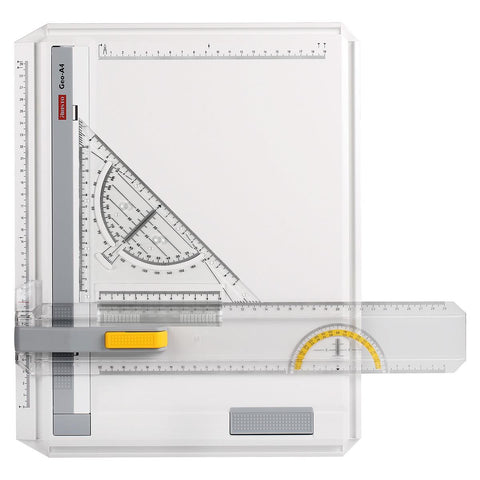

The parallel straight edge in L- form with ergonomic grip is equipped with 2 scales, a yellow protractor and the approved 2-point slide technology for smooth sliding and precise positioning. With stop-and-go and free-running mechanism you can fix the straight edge while drawing. Two guide slots at the lower end of the guide track protect the straight edge from accidental slipping out. The lower scale allows drawing until the very bottom edge. You can put for example the ARISTO rapid set square on the guidance bars of the straight edge.

The board is made of shock-resistant plastic, non-reflecting and dimensionally stable. With the magnetic clamping rail with window for controlling the paper margin and an additional clamp you can perfectly fix the drawing paper. The integral compass plotting scale makes possible to pick off radii quickly. Antislip knobs on the lower side of the board make the position perfect.

The included transparent rapid set square with hypotenuse 17cm, equipped with grip and ink knobs, enables direct and indirect measurements of distances and angles, drawing of horizontal and vertical lines as well as hatching.

For storage and transport, the drawing board is packed in a solid cardboard box with handle.

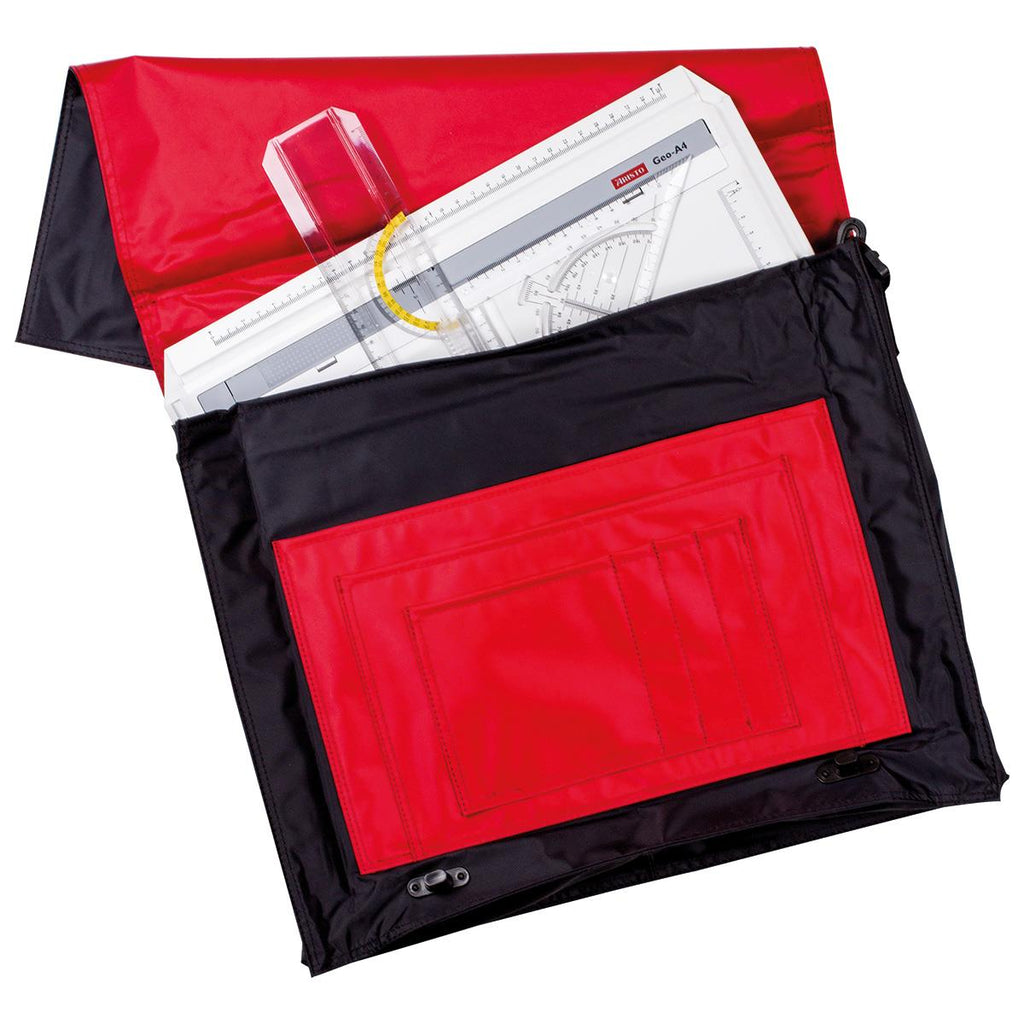

The practical ARISTO Carry Bag made of black/red plastic is equipped with belt and handle. Inside pockets offer sufficient space for different drawing tools.

Product features

• Drawing board made of solid and non-reflecting plastic
• Antislip protection on the lower side
• Magnetic clamping rail with window for controlling the paper margin
• Compass plotting scale for picking off radii quickly
• Straight edge with2-point-guidance
• Ergonomic grip with stop-and-go and free-running mechanism
• Guidance bars on the straight edge for precise use of accessories such as drawing head and rapid set square
• Rapid set square for measuring and drawing
• Solid Carry Bag in black (exterior) and red (interior)
• Product quality “Made in Germany”
• Corresponds to ÖNORM A2133
• Drawing board comes with straight edge and rapid set square in a solid cardboard box with a robust Carry Bag made of plastic
